Although concrete is a strong and durable material, engineers are always looking for ways to improve the strength of buildings that require more stability.
Post-tensioned concrete is one of the products that resulted from this search for better materials. It’s a popular option for foundations for multiple reasons.
This article will explain the post-tension foundation, its advantages and disadvantages, and when it is best to use one. It will also compare post-tension concrete to traditional concrete using rebar as a reinforcement.
Table of Contents
1. What Is a Post-Tension Foundation?
2. Advantages of a Post-Tension Foundation
3. Disadvantages of a Post-Tension Foundation
4. Post-Tension Concrete vs. Traditional Rebar
5. When to Use Post-Tension Concrete for a Foundation
A foundation system with tensioned steel cables in a concrete slab is called a post-tension foundation.
Prestressing is achieved by crisscrossing high-strength steel tendons into the foundational forms to create a post-tension slab concrete foundation.
Concrete is poured over these tendons. Once it’s dry, the tendons are stretched, tightened, and anchored.
It’s important to note that this process is not a DIY project for homeowners. It requires expertise, precision, and expensive equipment.
Post-tensioning concrete is not a new idea. In fact, it’s been around since the 1930s, but it has evolved into an effective and more widely applicable concrete strengthening method.
Engineers have used new materials, techniques, and systems in post-tensioning to improve its strength, durability, and sustainability.
Since foundations are among a structure’s most critical elements, it is no wonder that post-tensioning is often used for reinforcement.
The following unique advantages make it a popular choice for many contractors:
Post-tension foundations significantly reduce cracking and shrinkage in concrete, a common issue in traditional slab foundations. (Read more about slab foundations.)
The tensioned cables (or tendons) apply a compressive force on the concrete, counteracting natural forces that might otherwise cause cracks as the concrete cures and shrinks.
This pre-stressed setup makes the foundation less likely to form cracks, even under heavy loads or minor shifts.
By minimizing these vulnerabilities, post-tension foundations ensure a longer-lasting and more stable structure, which is particularly beneficial for buildings that experience frequent temperature changes.
Another key advantage of post-tensioned foundations is that they allow for thinner, lighter slabs than conventional ones.
Using high-strength tendons improves the slab’s structural efficiency, meaning less concrete can achieve the same or better durability as a traditional, thicker foundation.
This is particularly beneficial in projects where minimizing the amount of concrete is a priority, such as in environmentally sensitive or low-weight constructions. The combination of reduced material and enhanced strength results in an efficient and practical foundation for a wide range of applications.
Post-tension foundations provide enhanced resistance to soil movement, making them ideal for areas with reactive soil types, such as:
The tendons within the concrete can hold the slab together even during differential shifts caused by soil expansion or contraction, which can damage traditional foundations.
This unique stability is essential in regions where soil conditions are less predictable. It helps the foundation withstand external pressures without causing structural harm.
While post-tension foundations require specialized materials and skills, they offer cost benefits for larger-scale projects.
Thinner slabs mean less concrete is needed, reducing the overall material cost, while the faster installation process can reduce labor requirements.
For larger builds, where traditional materials and methods would consume more resources, post-tensioning helps lower expenses without compromising quality.
This cost-effective approach allows developers to stretch budgets further, especially for projects requiring extensive foundation coverage.
Related: Mastering Construction Budgeting: A Comprehensive Guide
Although it has many benefits, this type of foundation has some drawbacks that make it unsuitable for specific projects. Architects and engineers should consider these disadvantages before beginning a concrete project.
The design and installation of post-tension foundations are complicated and require expertise from a trained structural engineer to ensure correct tendon placement.
Proper post-tensioning techniques must be employed to prevent future structural weaknesses, which could lead to costly repairs.
Contractors have to have specialized knowledge of how to tension cables and monitor concrete during curing. Without skilled professionals, there is a risk of an unstable foundation, so hiring qualified contractors and engineers is essential for a safe and effective post-tension installation.
One drawback of post-tension foundations is that repairs can be challenging and expensive. Repairing damaged or failing tendons requires busting through the concrete, which can be disruptive and labor-intensive.
Additionally, locating the specific area of damage within a foundation isn’t always straightforward, increasing both the time and cost of repairs.
Although post-tension foundations can be cost-effective for larger projects, they have higher initial costs due to the required specialized materials, equipment, and expertise.
The tendons, tensioning devices, and labor needed for installation are more expensive than those for traditional foundations, making this type of foundation less practical for smaller projects with tight budgets.
For many small businesses or residential builders, the upfront pricing of post-tensioning may not be justifiable, even though it offers long-term benefits in specific environments.
Most home builders use traditional foundations, which are reinforced using rebar.
How does a post-tension slab compare to this method?
This section will compare post-tension concrete to traditional rebar in terms of structural strength, durability over time, cost, time, and project-specific considerations.
Post-tension concrete is superior to structural strength, especially in handling tensile forces and supporting heavier loads.
Tensioned steel tendons within the concrete slab create active compression, effectively countering forces that otherwise cause cracks. While still offering strong support, traditional rebar provides passive reinforcement, meaning it can absorb stress but does not actively counteract it.
Post-tension concrete’s proactive strength and stability make it ideal for projects with high structural demands or those exposed to significant tensile forces over time.
Post-tension concrete also wins on durability, particularly in challenging environmental conditions. The design reduces cracking, which helps prevent pathways for moisture or other elements that could degrade the concrete.
In contrast, traditional rebar is more susceptible to rusting over time. When rebar corrodes, it causes spalling or breaking off concrete surfaces, leading to structural degradation.
Post-tension concrete’s resistance to cracking and environmental wear provides a long-lasting solution with minimal maintenance required.
Both methods have financial advantages, making this comparison a tie.
Traditional rebar is typically less expensive at first and requires less specialized equipment, so it’s a budget-friendly option for smaller projects. However, rebar generally requires more material, especially in larger applications, which can increase costs over time.
Conversely, post-tensioning has a higher upfront cost due to specialized materials and installation requirements. Yet, it ultimately demands less concrete, so it can be more economical in large-scale projects where long-term material savings offset the initial investment.
Post-tensioning generally saves time both during installation and in long-term maintenance. The tensioning process makes it possible to install thinner concrete slabs quicker.
Post-tension concrete is less prone to cracking and requires fewer repairs and maintenance.
Traditional rebar foundations involve additional setup steps — like arranging and securing the steel bars before pouring concrete — which can extend installation time.
The added maintenance for rebar can also make post-tensioning a more efficient choice.
Project-specific factors often determine whether post-tensioning or traditional rebar is the better choice.
Soil conditions play a major role. Rebar is more suitable for stable soils that don’t shift, while post-tensioning is ideal for expansive soils prone to movement.
Project size also matters; for smaller-scale projects, rebar is more practical, while post-tensioning suits larger construction where material efficiency and durability are priorities.
Finally, structural needs guide the choice, as high-load applications benefit more from post-tensioning’s added strength. Meanwhile, rebar provides reliable support for residential and smaller load-bearing structures.
Post-tension concrete for foundations is generally used in the following situations:
Post-tension concrete is highly beneficial for foundations built on expansive or unstable soils. These can shift and move based on moisture levels or environmental conditions.
The tensioned cables within the post-tension slab actively compress the concrete, helping to maintain structural integrity despite the soil movement beneath it.
This approach minimizes cracking more effectively than traditional rebar foundations, making it great for areas with clay or expansive or organic soils.
By keeping the slab intact during shifts, post-tension concrete offers a stable foundation resilient to environmental changes that would otherwise jeopardize structural stability.

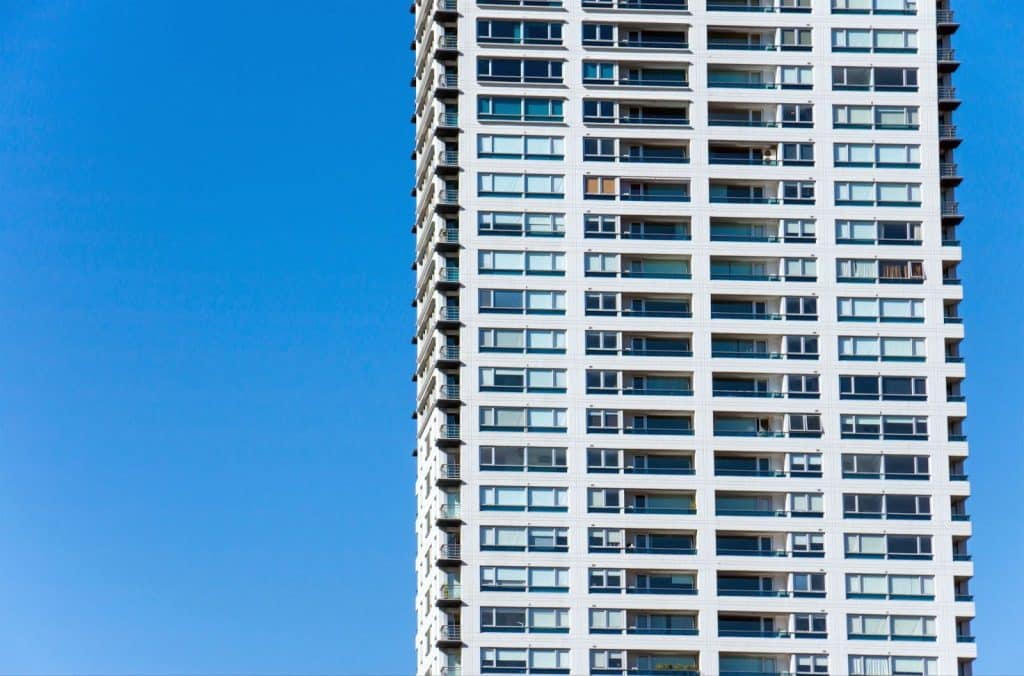

This method is ideal for multi-story residential buildings, large homes, and commercial buildings where long spans and load-bearing capacity are essential.
Post-tensioning allows for a thinner yet stronger slab, ensuring long-term durability without excessive material use.
Though the upfront costs may be higher, post-tensioning offers better cost-efficiency over time, especially in projects where longevity and structural resilience are priorities.
Post-tension concrete is a strategic investment for developers looking to balance initial costs with long-term stability.
Post-tension concrete provides the additional strength and flexibility needed to bear substantial weight in high-load structures such as parking garages and high-rise buildings.
The post-tensioning process gives the foundation the capacity to handle heavier loads and withstand more significant stress compared to traditional rebar.
Tensioned cables distribute forces more evenly across the slab, reducing the risk of cracks or shifting under pressure.
This structural reinforcement makes post-tension concrete ideal for projects requiring load-bearing capacity and durability. It supports the complex needs of large, heavily trafficked buildings with respect to safety and structural strength.
Finally, post-tension concrete is a viable option for retrofitting and reinforcing existing foundations. When foundations succumb to cracks and shifts due to age or soil movement, post-tensioning can provide a stabilizing solution without a total replacement.
Contractors can reinforce the structure by embedding tensioned cables into the current slab, effectively counteracting the forces that cause cracks and instability.
Retrofitting with post-tensioning is especially valuable in cases where environmental conditions or foundation shifts have caused ongoing structural issues. It restores the foundation’s resilience and extends its lifespan without the need for a costly rebuild.
Post-tension foundations offer a versatile and robust option for many building projects, especially in challenging environments or high-load scenarios. Reducing cracking, providing additional strength, and enabling material efficiency bring significant advantages, particularly for expansive soils and large structures.
However, these benefits come with some trade-offs, such as higher initial costs, the need for specialized labor, and complex repairs.
Weighing the pros and cons and considering project-specific factors is essential to determine whether post-tensioning or traditional rebar will best meet the structural needs. Ultimately, understanding the distinct advantages of each type helps builders make informed decisions that enhance stability and value.
