In any construction project — whether a single-family home, commercial building, or towering skyscraper — the strength and stability of the structure begins below ground.
The footing is one of the most critical yet often overlooked components of a building’s support system.
Despite their importance, footings are often misunderstood, confused with foundations, or generalized as just “the base.”
But in reality, the type of concrete footing used, its size, and how it interacts with the soil are all carefully calculated decisions that can significantly impact a building’s safety and lifespan.
This article will serve as a complete introduction to construction footings. We’ll cover what they are, the types commonly used in the industry, their crucial role in construction, and how they differ from foundations.
Table of Contents
1. What Are Construction Footings?
2. Types of Footings in Construction
3. The Role Footings Play in Construction
4. What is the Difference Between a Foundation and a Footing?
5. Factors to Consider When Building Footings
Construction footings are the structural elements at the very bottom of a building’s foundation system. Their primary purpose is to safely transfer a structure’s weight (or load) to the ground beneath it.
Footings distribute this load across a larger surface area, preventing the building from sinking, shifting, or settling unevenly over time.
Typically made from poured concrete (often reinforced with steel rebar for added strength), footings are placed below the frost line in colder climates to prevent damage from freeze-thaw cycles.
The exact size, depth, and shape of a footing depend on several factors, including the type of structure being built, the load it must support, and the characteristics of the underlying soil.
Without footings, a building’s weight would concentrate at specific points on the soil, increasing the risk of structural damage — or even collapse.
Footings spread the load evenly, providing a solid and stable base that allows the rest of the foundation (and the structure above it) to function properly.
However, not all buildings require footings. When this is the case, slab-on-grade foundations are used.
Not all structures and soil conditions are the same. That’s why there are several types of footings, each designed to accommodate specific building loads, environmental conditions, and site constraints.
Selecting the correct footing is crucial to ensure the safety and stability of the entire structure.
Below are the most common types of footings in construction:
Isolated footings are used to support individual columns or posts. They are typically square, rectangular, or circular slabs of reinforced concrete that spread the column’s load over a larger area of soil.
This type is ideal for buildings with widely spaced columns and relatively light loads, such as residential homes.
Strip footings are long, continuous slabs of concrete that support load-bearing walls. They distribute the wall’s weight evenly along its length and are common in buildings made with masonry or poured concrete walls.
Strip footings are particularly suitable for structures built on uniform, firm soil conditions and are commonly used for retaining walls.
When two or more columns are too close together for separate footings, or when one is near a property line, a combined footing is used.
It supports both columns with a single, reinforced slab — often rectangular or trapezoidal in shape — to distribute the load evenly. Combined footings help maintain structural balance when uneven loads or site constraints exist.

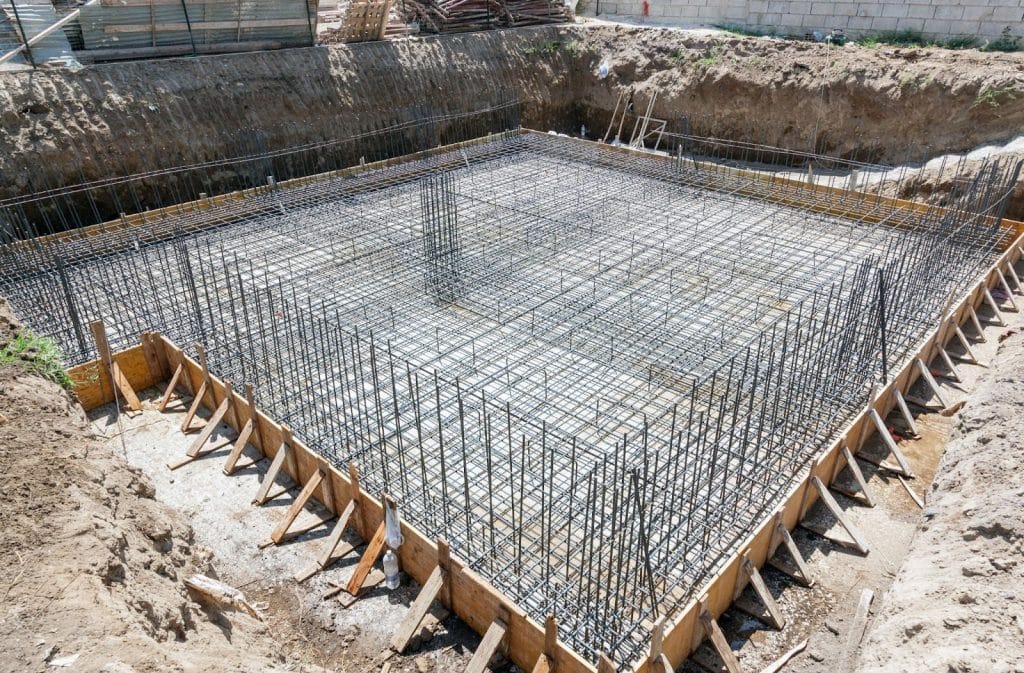

Raft or mat footings involve a thick concrete slab that covers the entire footprint of the building.
This type of footing is ideal for poor soil conditions or structures with closely spaced columns and heavy loads. By spreading the weight across a large area, raft footings reduce pressure on the soil and help prevent differential settlement.
Pile footings are used when the surface soil has poor load-bearing capacity.
Instead of spreading the load at the surface, piles (long concrete, steel, or timber columns) are driven or drilled deep into the ground to transfer the load to more stable soil or rock layers. Pile foundations are standard in high-rise buildings, bridges, and coastal structures.
Strap footings are used when a column is near a property boundary and a combined footing isn’t feasible.
Two isolated footings are connected by a concrete strap beam that doesn’t bear any vertical load but helps balance and transfer forces. This allows the edge column to be supported without eccentric loading.
Sloped footings have angled sides instead of vertical edges, which can reduce the amount of concrete needed. They are structurally efficient and aesthetically preferred in some regions.
These are usually used in small- to medium-sized buildings and are cost-effective when load demands are moderate.
Stepped footings, used on sloped terrain or where soil depth varies, consist of a series of “steps” that follow the ground’s contour.
This design minimizes excavation while maintaining consistent footing depth, making it ideal for hillside construction.
Grillage footings consist of multiple layers of steel or timber beams encased in concrete.
They are used to support heavy column loads over soft soils and are particularly effective when soil bearing capacity is low but a shallow foundation is required.

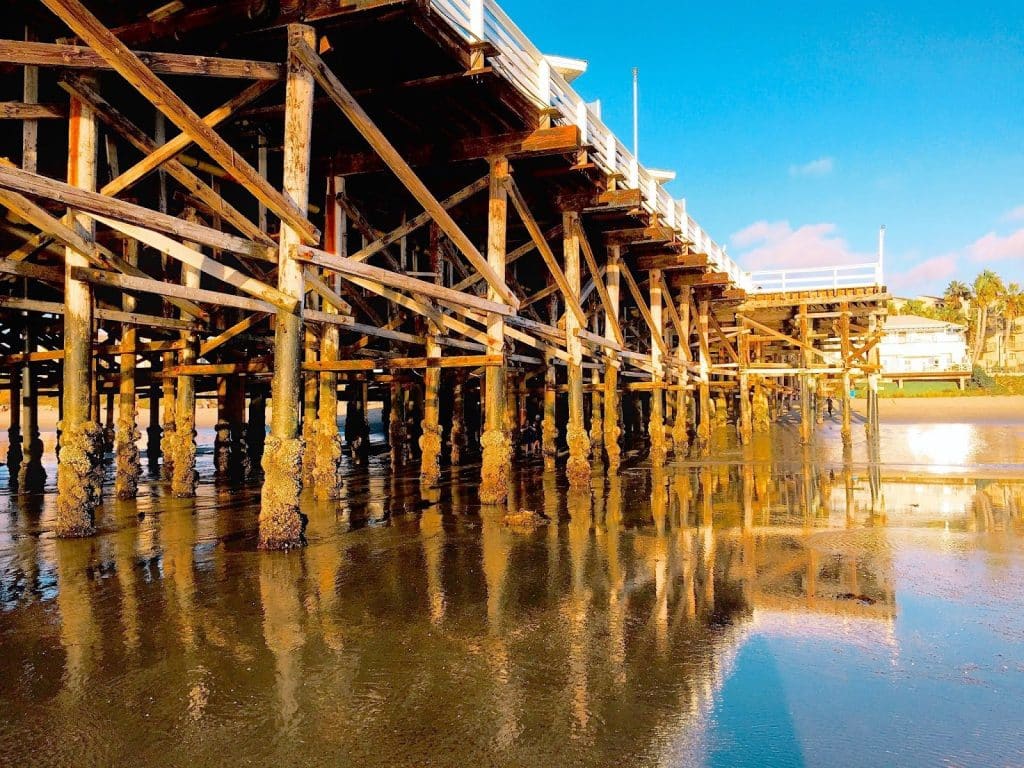

Caissons are deep foundations constructed by drilling a large-diameter hole into the ground and filling it with concrete and reinforcement.
They are similar to pile foundations but are typically larger in diameter and constructed on-site. Caissons are ideal for bridges, piers, and marine structures.
Footings act as the intermediary between the building and the ground, performing several essential roles that directly impact the strength, stability, and safety of the entire project.
One of the primary roles of a footing is to spread the weight of the building across a wide area of soil.
Without a footing, the concentrated load from walls or columns could cause the soil beneath to compress unevenly, resulting in cracks, tilting, or even structural failure.
Footings create a stable platform that diffuses the load and minimizes pressure on any single point.
Soil is rarely uniform across a construction site. Some areas may be more compacted or have higher moisture levels than others.
Footings can be customized in depth and width, or switched to a different type entirely, to adapt to these conditions. This helps ensure the structure is supported evenly, even if the ground itself isn’t consistent.
Different parts of a building may settle at varying rates if the load isn’t properly distributed. This is especially problematic in buildings with different weights across various sections.
A well-designed footing helps prevent differential settlement, which can lead to:
A properly constructed footing contributes to the overall lifespan of a building.
It reduces the likelihood of structural failures, minimizes the need for costly repairs, and helps the building withstand decades — or even centuries — of use and environmental wear and tear.
Footings provide essential stability against environmental forces like wind, flooding, earthquakes, and frost heave.
In areas with seasonal freezing and thawing, for example, placing footings below the frost line prevents them from shifting due to ground movement. Similarly, deep or reinforced footings can protect buildings from uplift or overturning caused by high winds or seismic activity.
Proper foundation footing design is a legal requirement under most local and national building codes and must be signed off on by a structural engineer.
These codes are in place to ensure the public’s safety, safeguard property investments, and promote the longevity and durability of structures.
Failure to comply with these requirements can result in:
By adhering to code, builders not only meet legal obligations but also ensure that the structure is safe for occupancy and built to last.
In construction, the terms “foundation” and “footing” are sometimes used interchangeably. However, they refer to distinct components within a building’s support system.
Understanding the difference is essential for anyone involved in designing, building, or maintaining structures.
A footing is the lowest part of a building’s support system. It’s typically a concrete base that directly contacts the soil. Its main job is to spread the load from the foundation over a broader area to prevent settling or shifting. The footing is always located beneath the foundation walls, columns, or piers.
Think of the footing as the “shoes” of a structure: it helps prevent sinking into the ground by distributing weight evenly.
The concrete foundation sits on top of the footing and supports the building itself. It transfers the structure’s load from the walls, floors, and roof into the footing, then down into the earth. The type of foundation may include basement walls, slab-on-grade, crawl spaces, or piers, depending on the design and climate.
The foundation can be thought of as the “legs” and “spine” that support the structure and connect it to the ground.
Designing and constructing a footing isn’t as simple as pouring concrete into a hole.
Several critical factors must be considered to ensure the footing performs well under the structure’s load and environmental conditions.
The strength and stability of a footing depend heavily on the soil layers on which it rests.
Different soil types (such as clay, sand, silt, gravel, and rock) have different load-bearing capacities.
For example, compacted gravel offers excellent support, while loose or expansive clay may shift or compress under pressure.
A soil test or geotechnical survey is often required to determine the soil’s ability to support the structure and guide the footing design.
Footings must be designed to carry the weight of the entire structure, including:
The heavier or more complex the building, the stronger and more reinforced the footing must be.
Uneven terrain, sloped sites, or areas with restricted access may influence the footing design. For example, stepped footings may be used on sloped ground to maintain consistent depth below grade.
Drainage patterns, vegetation, and proximity to neighboring structures also impact where and how footings can be placed.
What Is “Earthwork” in Construction?
In colder climates, footings must be installed below the frost line — the depth at which the ground freezes during winter — to prevent frost heave, which can lift and crack the foundation.
Building codes typically specify the required minimum depth based on your region’s climate data.
Footings in areas with poor drainage or high groundwater tables need special considerations. Standing water can weaken concrete over time or cause soil erosion beneath the footing.
Solutions may include adding gravel bases, drain tiles, sump pumps, or waterproofing membranes to protect the structure from water damage.
Local building codes outline the minimum requirements for footing depth, width, materials, and placement. These regulations are in place to ensure structural safety and maintain uniform standards.
Compliance is not optional; not meeting code can result in failed inspections, project delays, or even legal liabilities. Always consult your local building department before beginning construction.
Most footings are made of reinforced concrete: a mix of cement, water, sand, and aggregate, strengthened with steel rebar.
The quality of these materials and proper reinforcement are critical to the footing’s performance. Poor-quality concrete, incorrect mix ratios, or missing rebar can compromise the entire structure.
Allowing adequate curing time for the concrete (usually 7 to 28 days) ensures the footing achieves its intended strength and stability.
Proper footing construction requires more than just concrete and rebar — it demands thoughtful design, qualified engineering input, and strict compliance with local building codes.
Cutting corners at this stage can compromise the entire structure.
